10G X2 / XENPAK

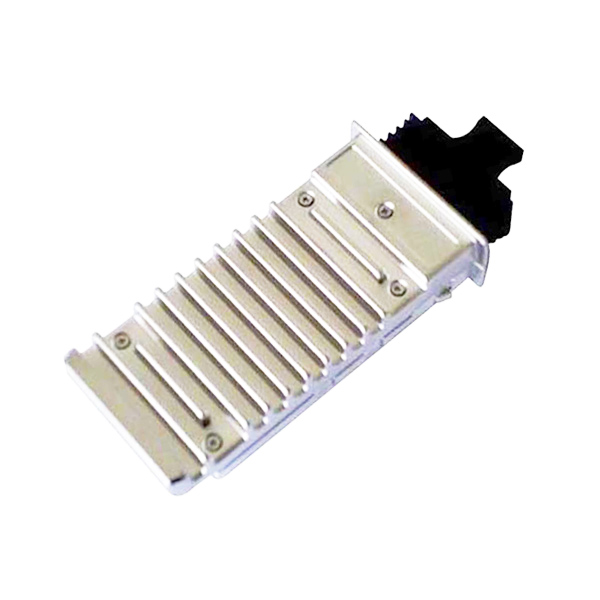

10G ZR X2 SMF 1550nm 80km SC DOM Transceiver Module
- Compatible with X2 MSA Rev2.0b
- Support of IEEE 802.3ae 10GBASE-ZR at 10.3125Gbps
- Transmission Distance up to 80Km(SMF)
- SC Receptacle 1550nm Cooled EA-DFB Laser
- Product description: 10G ZR X2 SMF 1550nm 80km SC DOM Transceiver Module
X2 Module is a highly integrated Serial optical transponder module for high-speed, 10Gbit/s data transmission applications.
4×3.125Gbps Ethernet Signal Input by XAUI Interface. An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer).
Designing for 80km Transmission with an uncooled directly modulated 1550nm Cooled EA-DFB Laser.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XENPAK MSA 3.0.
