10G X2 / XENPAK

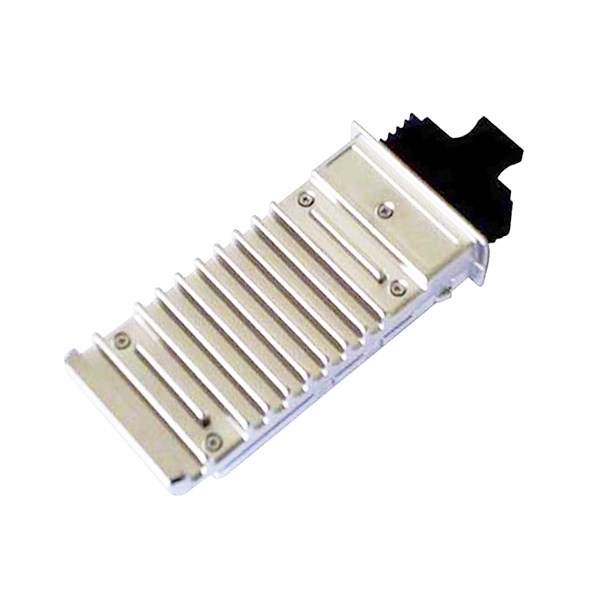

10G SR X2 MMF 850nm 300m SC DOM Transceiver Module

Compatible with X2 MSA Rev2.0b
Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
Transmission Distance up to 300m (MMF)
Vertical Cavity Surface Emitting Laser at 850nm
Product description: 10G SR X2 MMF 850nm 300m SC DOM Transceiver Module
INQUIRY

X2 Module is a highly integrated,Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 300m Transmission with a vertical cavity surface emitting laser (VCSEL). Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XENPAK MSA 3.0.
