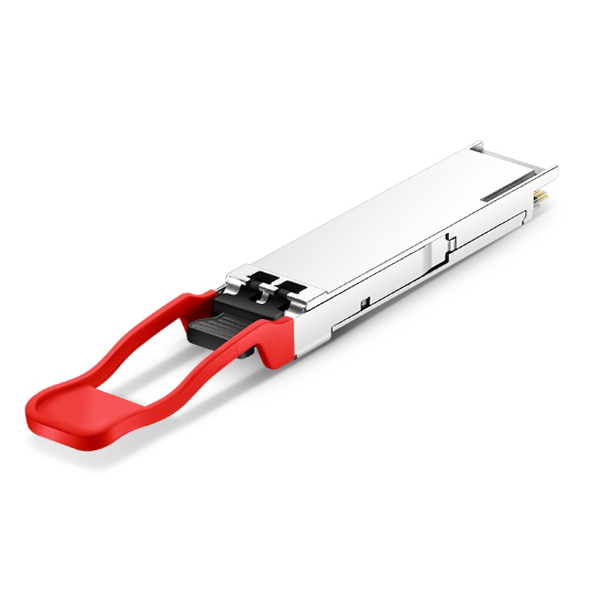

40G ER4 QSFP+ SMF 1310nm 40km LC DOM Transceiver Module

4 CWDM lanes MUX/DEMUX design
Transmission data rate up to 11.3Gbps per channel
Up to 40km transmission
SMF LC duplex connector
Product description: 40G ER4 QSFP+ SMF 1310nm 40km LC DOM Transceiver Module
INQUIRY

QSFP+ ER4 transceivers are high performance, cost effective modules supporting data rate of 40Gbps and 40km transmission distance with SMF.

The transceiver consists of three sections: 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission;

on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data; and MCU control unit.

The transceivers are compatible with 40GBASE-ER4 of IEEE802.3ba standard and SFF-8436 specification.
