10G XFP

10G DWDM XFP SMF CH17 To CH61 40km LC DOM Transceiver Module

Supports 9.953Gb/s to 11.1Gb/s bit rates
Maximum link length of 40km with SMF
100GHz ITU, C Band DWDM Cooled EML laser and PIN photodiode
XFP MSA package with duplex LC connector

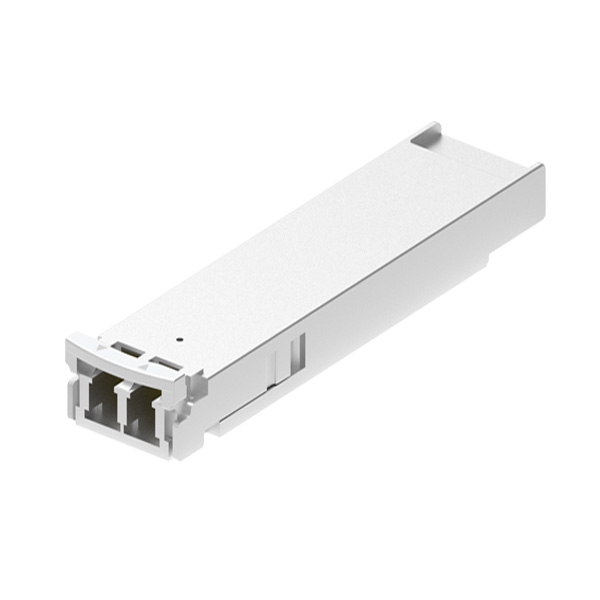

Product description: 10G DWDM XFP SMF CH17 To CH61 40km LC DOM Transceiver Module
INQUIRY

XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 40km on SMF. The transceiver module comprises a transmitter with 100GHz C Band 1528.77~1563.05nm DWDM Cooled EML laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
