10G SFP+

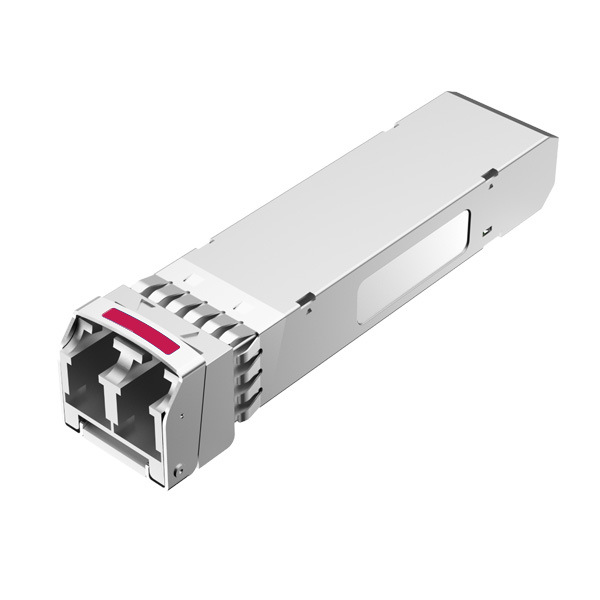

10G DWDM SFP+ CH17 To CH61 SMF 40km LC DOM

Supports up to 10.7Gbps bit rates
100GHz ITU, C Band DWDM Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Single +3.3V power supply
Product description: 10G DWDM SFP+ CH17 To CH61 SMF 40km LC DOM
INQUIRY

SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF.

The transceiver consists of three sections: a cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.

All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
